Product Details
＋

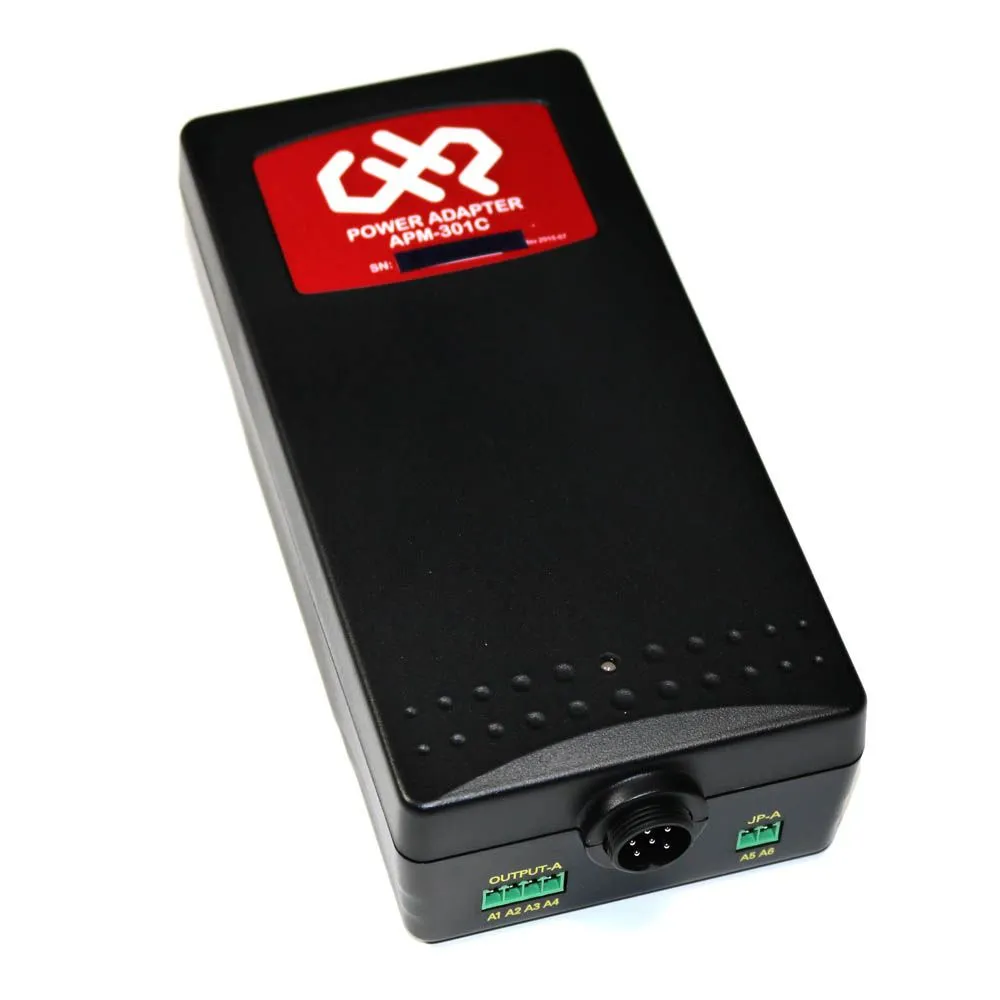

CTRL,100-240VAC,AT-6000/6500/6800
Specifications
| Part No. | APM-301C |
| Input Voltage | 100-240VAC, 50/60Hz |
| Power Consumption | 75W |
| Output Voltage | 20 - 30 VDC |
| Output Voltage Setting | Stepless |
| Output Pin | 6 Pin |
| Dimension | 172 x 84 x 46mm |
| Weight | 380g (0.84lb) |
| Power Cord Length | 1.8m (5.9ft) |
| Applicable Driver | AT-6000 AT-6500 AT-6800 |
| Safety Approval |
STANDARD POWER SUPPLY
• Universal power source
• Stepless speed control
• Soft Start Feature
• External control terminals
CONTENTS
| Item No. | Description |
| APS-351B/APS-301A/APM-301A/APM-301C | Power Supply |
| AT-2W1024 | Power Cord |
| -- | RPM Adjustment Tool |
| AT-2T6012 | 4 Pin Terminal Connector |
| AT-2T6011 | 2 Pin Terminal Connector |
| -- | Instruction Manual |
